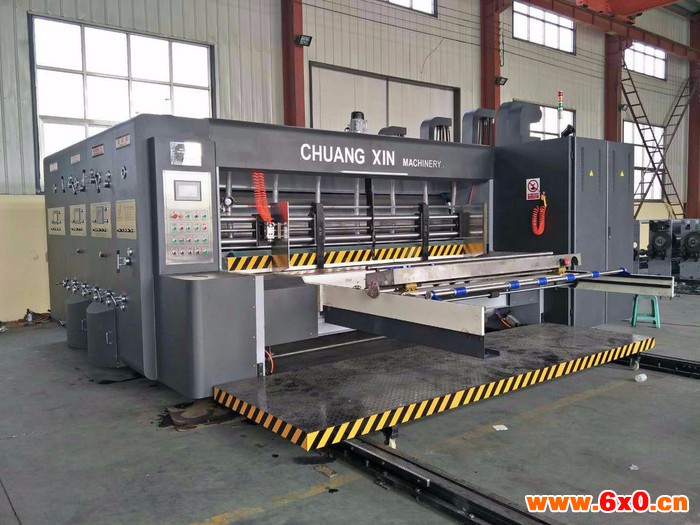

厂家直销-创新3800型 纸箱设备,水墨印刷机,高速水墨印刷机,包装机械,印后设备,纸箱机械厂家
2019-11-12 09:58 浏览:1203
产品参数
价格:￥650000.00/台
包装:缠绕膜
别名:高速水墨印刷圆压圆免版模切机
起订:1台
供应:10台
产品详情
| 包装 | 缠绕膜 |
| 别名 | 高速水墨印刷圆压圆免版模切机 |
| 类型 | 自动 |
| 售后服务 | 保修一年 |
| 新旧程度 | 全新 |
| 用途 | 印刷设备 |
| 适用行业 | 餐饮,工艺品,礼品,食品,玩具,烟酒,医药 |
| 包装类型 | 箱 |
| 品牌 | 创新 |
| 型号 | 3800型 |
| 加工定制 | 是 |
| 包装材质 | 塑料 |
| 功能与特点： |
| ● 电脑调整，换单更快，操作方便。
● 整机墙板、重要部件，均由高精度加工中心制做，数控磨床研磨而成。
● 所有传动轴、辊材质均为优质钢，高精度动平衡校正，镀硬铬、表面研磨。
● 传动齿轮材质为20CrMnTi合金钢，渗碳淬火处理，硬度为HRC58-62研磨而成，长期使用，套色精度高。
● 整机主要传动部位，采用免键连接环，消除连接间隙，适合长期高速印刷。
● 整机喷淋式润滑，附设机油自动平衡装置。
● 自动归零，自动复位。
● PClink控制网络、MCGS软件、西门子低压电器，主机变频控制，省电达30%。
● 双轴开槽配置整机生产管理电脑控制系统，单轴开槽配置整机电脑控制系统。
选装：远程电脑诊断系统。
|
| Function and Characteristics： |
| ● Computer order storage and adjustment, faster order update and convenient operation.
● Complete machine wallboard and other important pieces are all made by high precision process center and grinded by digit-controlled grinder.
● All the transmission axle and rollers are made of high-quality steel with high-precision dynamic balance, plated with rigid chrome and grinded surface.
● The transmission gear adopts the high-quality steel, which is grinded after heat-treatment, after long use, it still maintains the high topping precision.
● The main machine transmission parts adopt the hand-free connection ring to eliminate the interval, suit able for long-term high speed printing.
● The whole machine undergoes the spray lubrication and is equipped with engine oil automatic balance facilities.
● It possesses the print, die-cutting, slotting memory function, which could return to Zero and Re-set automatically.
● PClink control network, MCGS software, Siemens low voltage electric appliance and host frequency conversion control, 30% electricity saving.
● Double axle slotting to configure whole machine production management computer control system and single axle slotting to configure whole machine production management computer control system
Optional: remote computer diagnosis system |
| 主要技术参数 (Main Technical parameter)： |
| 参数名称
WYAZS NAME | 单位 UNIT | 2600型 | 2800型 | | 最大过纸面积
Max paper coverage area | mm | 1500×2500 | 1500×2700 | | 有效印刷面积
Effective printing area | mm | 1500×2200 | 1500×2400 | | 最小加工尺寸
Min finish size | mm | 400×500 | 400×500 | | 印刷版厚度
Thickness of printing plank | mm | 6 | 6 | | 最高速度(片/分)
Max speed | pieces/min | 120 | 120 | | 经济速度(片/分)
Economy speed | pieces/min | 100 | 100 | | 主电机变频功率
Frequency conversion power of main motor | kw | 18.5-30 | 18.5-30 | | 套色精度(四色)
Topping precision(four colors) | mm | ±0.75 | ±0.75 | | 开槽精度
Slotting precision | mm | ±1.5 | ±1.5 | |
