价格:￥81600.00/台
加工定制:是
种类:制鞋流水线
产品别名:加硫机
供应:99台

加工定制	是
种类	制鞋流水线
操作类型	半自动
产品类型	全新
用途	用于不同形状，规格，型号的男女鞋/靴的密封式加温蒸湿真空成型
产品别名	加硫机
功率	16.8/22（Kw）
品牌	VERVE
型号	V12B/C

Heat Setting Machine Series

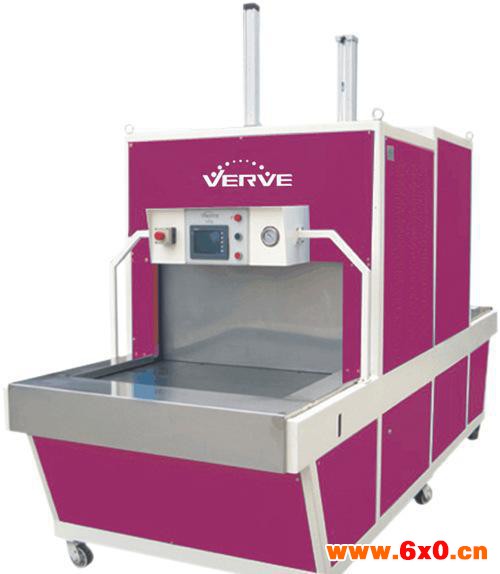

V12B/C真空加硫机

本机型主要用于各种不同形状、规格、型号的男女鞋/靴的密封式加温蒸湿真空成型

1.容智:高温蒸汽与德国高精密真空技术的**结合,使鞋子内液体物质迅速有效蒸发排除，使面料更加贴楦，除皱靓丽

2.节能:采用对流循环热风设计，使箱体内鞋子充分均匀加热，蒸湿软化，比同类产品节能50%

3.  抽真空时间标准为2~3分钟，温度合适度可根据皮料材质不同而调整

4.  采用微电脑处理器PLC控制，人机界面更直观，操作简便

尺寸：3700/4515*1280*2176mm

功率：18/25.5kw

电源：380v

产量：1800/2600双/10小时



V12B/C Instant Vacuum Vulcanized Forming Machine

Purpose: It is suitable for the beating vacuum forming of man and women shoes and boot s of all kinds of different shapes, specification and models.

Features:

SAGACITY: with the perfect combination of instant hot-wet high pressure steam and German vacuum technology, which can make the liquid substance inside shoes vaporize out soon; as a result the upper is tightly fix to the lastENERGY-SAVING: Adopting heat-convective circulation design, every shoes are under average heat, steam and temperature, achieve 50% less power comsuption.The standard time for vacuum is 2 to 3 minutes and we can adjust the temperature and humidity according to different matierals.It is controlled by PLC and easy to operate.

Dimension: 3700/4515*1280*2176mm

Power:16.8/22.25kw/380V

Output: 1800/2600pairs/10hr
