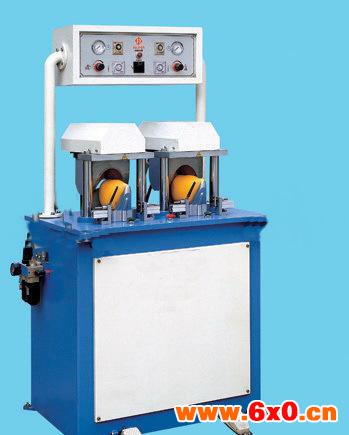

QY717A单头鞋面定型机

用途  本机型适用男女鞋类、高翘度皮鞋结构前对鞋面翘度定型。便于结帮，美观鞋头。

特点

胶模采用耐磨耐热硅胶，外铝膜温度可达200℃。

定型后，内衬粘合紧密，不起皱，不变型，不起泡且可减少破损。

可及时造型打样，减少样品开发时间，降低成本。

鞋背的准确定型更容易于前帮机的操作，从而可提高产量。

尺寸：6300*450*2000mm

功率：0.8kw

重量：150kg

产量：1500双/8小时pairs/8hr

QY717A  Single Station Upper Moulding Machine

Purpose: It’s applicable to men/women shoes with high heels or with high toe spring for moulding to offer preparation for lasting, make toe shape elegant..

Features:

The rubber mould is made of wear-resistant & heat resistant silicone, the temperature of outer aluminum mould is can be up to 200℃.Lining is tightly pasted to the upper after moulding, and vamp is free of wrinkle, deformation or bubble, and for less damage.It offers timely shape sampling, reduces the time for sample development and the cost of product.The accurate shaping of instep makes the operation of front upper machine and the increase of output easilier.

Dimension: 630*450*2000mm

Power: 0.8kw

Weight:150kg

Output: 1500pairs/8hr
