价格:￥21.00/卷
厚度:0.32mm
基材:PET（聚酯）布基
起订:1卷
供应:10000卷
发货:10天内

厚度	0.32mm
基材	PET（聚酯）布基
适用范围	化工,机械,变压器,电子,马达线束包裹
颜色	黑色
胶系	橡胶基
长期耐温性	150 °C
短期耐温性	耐低温-40度
延伸系数	22 %
品牌	德莎TESA
加工定制	是
纯肉厚	0.32mm
是否双面胶带	否

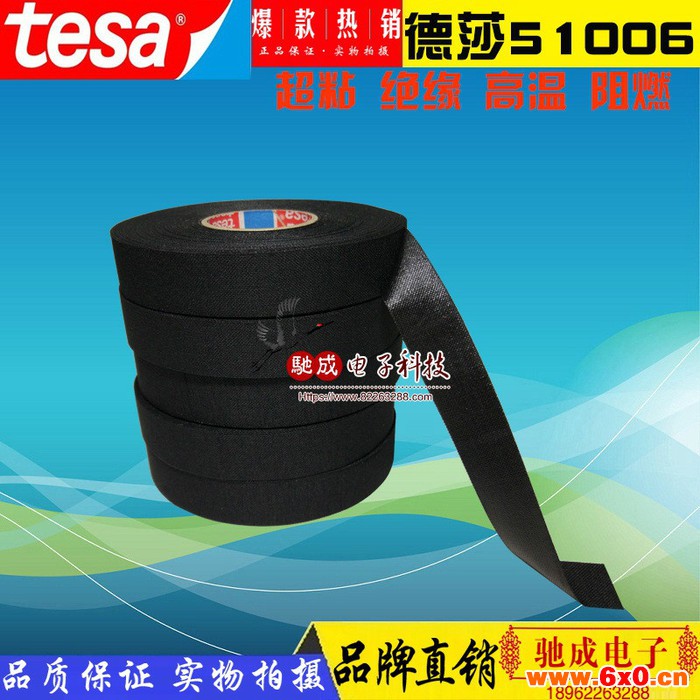

tesa 51006

PET cloth tape for abrasion protection

tesa 51006 is a PET cloth wire harness tape with a rubber based adhesive.

Major Features:

High temperature resistance 150°C / 3000h

Abrasion resistant

Strong adhesion

Color: Black

Main Application

tesa 51006 is designed for the engine compartment, providing abrasion



protection.

Technical Data

Backing material PET cloth

Total thickness 320 μm

Type of adhesive rubber based

Adhesion to steel 4.5 N/cm

Elongation at break 22 %

Tensile strength 175 N/cm

Temperature resistance min. -40 °C

Temperature resistance (3000h) 150 °C

Abrasion resistance (10mmmandrel)

Class C (acc. toLV312)

Abrasion resistance (5mmmandrel)

Class B (acc. toLV312)

Flame resistance as composite Class B (acc. toLV312)

Unwind force (roll width ≤ 9mm) 6 N/roll (30 m/min)

Unwind force (roll width > 9mm) 10 N/roll (30 m/min)

Noise damping (decibel) Class A (acc. toLV312)

Additional Information

Standard widths: 9, 19, 25, 32 mm

Standard lengths: 25 m

Most combinations of width and length are possible

Further dimensions are available upon request

Standard core diameter: 38 mm
